Numerical parameterization implicit surfaces of the form f (x, y, z) = 0

#1 Posted: 10 years ago

520 likes in 451 posts.

Group: User

The grid lines are found by Draghilev Method
Method 1.
Building a line of intersection of the required surface
with the plane x = 0. This line is rotated in steps of 2 * Pi / s
about a vertical axis by an angle 2 * Pi, where s is the number of steps (the grid lines)

1 users liked this post

Davide Carpi 10 years ago

#2 Posted: 10 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

Method 2.
The rectangular grid

ELLIPSE3d2.pdf (631 KiB) downloaded 181 time(s).

1 users liked this post

Davide Carpi 10 years ago

#3 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

The graph an implicit surface depicted by lines
Examples of the idea of the algorithm taken from the publication of Alexey Ivanov
http://www.mapleprimes.com/questions/219995-Finding-A-Convinient-Parametrization-Of-Surfaces#answer233804

File not found.File not found.File not found.File not found.File not found.

3 users liked this post

Вячеслав Мезенцев 8 years ago, Davide Carpi 8 years ago, frapuano 8 years ago

#4 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

Two surfaces are taken from the site
http://xrt.wikidot.com/gallery:implicit
The calculation algorithm:
1.Find the line of intersection of the given surface with the plane Z=0
2.Through each point hold the plane x1 = C and find the line of intersection of that plane with a given surface.These lines represent a given surface.

File not found.File not found.

1 users liked this post

Davide Carpi 8 years ago

#5 Posted: 8 years ago

Jean Giraud

983 likes in 6,866 posts.

Group: User

Thanks for these two animations. In each one, the last three plots
stay red, though the animated plot works fine. A small detail:
each work sheet has three definitions left over at page 17.

Jean

1 users liked this post

Davide Carpi 8 years ago

#6 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

Thank you Jean,
Worksheets corrected. In addition, in the algorithm for calculating along with x1 = C can be used x2 = C:

double torus x2.sm (73 KiB) downloaded 119 time(s).

2 users liked this post

Davide Carpi 8 years ago, NDTM Amarasekera 8 years ago

#7 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

The tube in the form of a line of intersection of the cylinder and the torus (See post 7)
http://en.smath.info/forum/yaf_postst2307_Method-A-B--Draghilev-and-animation-spatial-mechanisms.aspx

Time calculation, 9 min.
Villarceau 9.sm (39 KiB) downloaded 109 time(s).

1 users liked this post

Davide Carpi 8 years ago

#8 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

Helical Tube

NonCirc.sm (53 KiB) downloaded 110 time(s).
TubeCir.sm (53 KiB) downloaded 113 time(s).

1 users liked this post

Davide Carpi 8 years ago

#9 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

The surface of the Wikipedia
https://en.wikipedia.org/wiki/File:Tri-brezel.svg

WiciSurf.sm (106 KiB) downloaded 119 time(s).

1 users liked this post

Davide Carpi 8 years ago

#10 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

Non-circular cylindrical vessels with quasi-ellipsoidal ends
Krivoshapko S.N. Ivanov V.N,Encyclopedia of Analytical Surfaces ,Springer,2015

Non-circular cylindrical vessels.pdf (1 MiB) downloaded 130 time(s).
Non-circular cylindrical vessels.sm (209 KiB) downloaded 114 time(s).
Shell1.sm (255 KiB) downloaded 118 time(s).
Shell2.sm (33 KiB) downloaded 117 time(s).
Shell3.sm (34 KiB) downloaded 114 time(s).

#11 Posted: 8 years ago

Jean Giraud

983 likes in 6,866 posts.

Group: User

Thanks Ber7 for the work sheets [Not finished downloading].
If you visit this document, I'm wondering:
"How to add red points in this plot".

Thanks in advance ... Jean

Maths sph2xyz.sm (13 KiB) downloaded 114 time(s).

#12 Posted: 8 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

Hello Jean,
Unfortunately, the 3d chart does not allow you to draw points.
Exit (hopefully temporary) -make a 3d chart on a 2d chart.
Maths sph2xyz2d.sm (21 KiB) downloaded 122 time(s).

#13 Posted: 7 years ago

Fridel Selitsky

520 likes in 451 posts.

Group: User

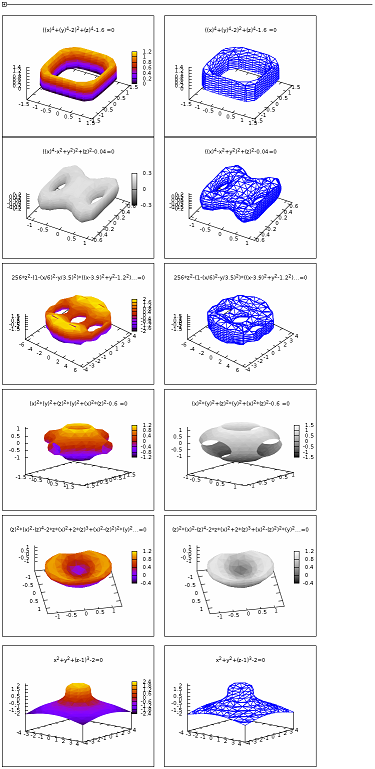

Implicit surfaces in Maxima

ImplicitMaxima.sm (363 KiB) downloaded 115 time(s).

3 users liked this post

frapuano 7 years ago, Martin Kraska 7 years ago, Radovan Omorjan 7 years ago

#14 Posted: 7 years ago

Martin Kraska

1,230 likes in 2,156 posts.

Group: Moderator

Nice examples!

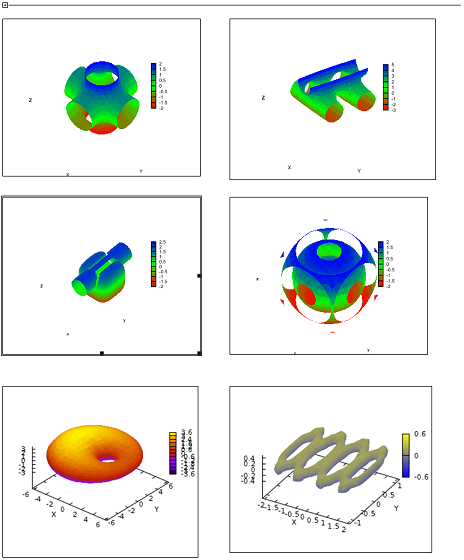

Just some remarks for those who want to play around with Maxima Draw.

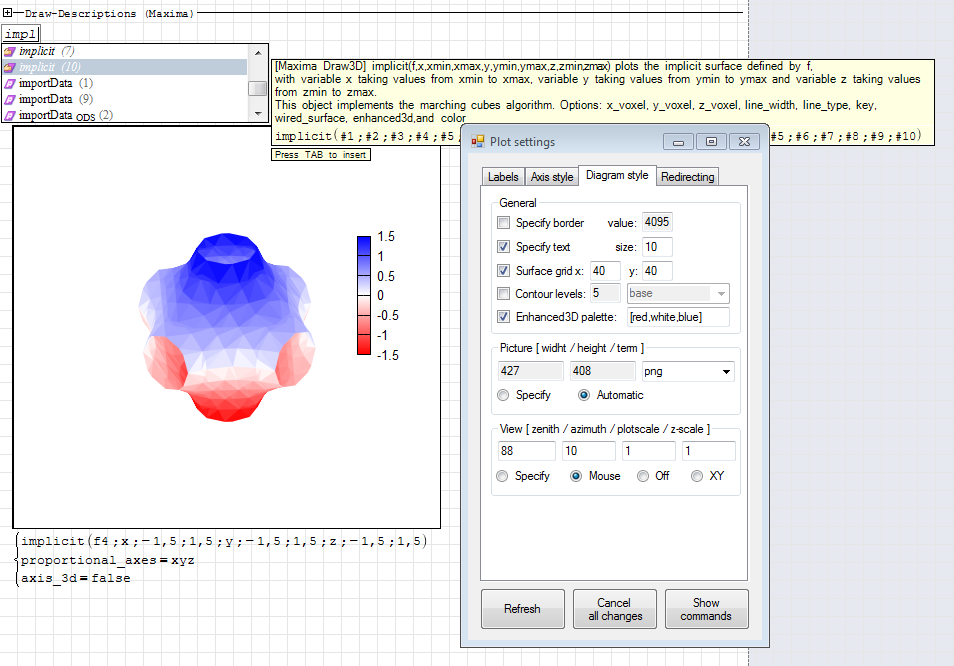

Instead of Image region with Draw() command you can use Maxima Draw3D region with interactive zoom, rotation and resize and a settings dialog.
Insert-> Maxima-> Draw3D
The performance isn't overwhelming, as the image is recalculated for each interaction.
The snippet "draw" provides help texts for the available draw commands and options.
Follow the link in my signature to see how to configure SMath with Maxima.

ImplicitMaxima_Kr.sm (492 KiB) downloaded 119 time(s).
