The attached file shows basic steps involved in estimating the capacity of a proposed reservoir to absorb a flood of a given return period.
The required data are (a) Inflow Hydrograph and (b) Elevation/Area (Topography of the reservoir site).
The reservoir has a bottom outlet which can release a maximum of 200 cumec to prevent inundation of a nearby town area downstream of the proposed reservoir.
This is based on a project study undertaken in Sri Lanka.Reservoir Flood Capacity Estimation.sm (188 KiB) downloaded 227 time(s).

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

3 users liked this post

Radovan Omorjan 9 years ago, Davide Carpi 9 years ago, overlord 9 years ago

#2 Posted: 9 years ago

Radovan Omorjan

325 likes and 1 dislikes in 2,052 posts.

Group: Moderator

Very impressive, thank you

Just a small typo after the definition of function CtoE(x,X), I think. The call is CtoL(x,CC) (L instead of E)

Regards,
Radovan

When Sisyphus climbed to the top of a hill, they said: "Wrong boulder!"

#3 Posted: 9 years ago

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Thank you.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#4 Posted: 9 years ago

NDTM Amarasekera

130 likes in 352 posts.

Group: User

Many thanks to omorr for pointing out the typo in call to CtoL(x,CC), next to the definition of the function CtoE(x,X).
It should be corrected as CtoE(x,CC).The result will be CtoE(x,CC)=60m, where CC has been defined as 150 MCM.
Sorry for the inconvenience.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#5 Posted: 9 years ago

overlord

558 likes in 1,335 posts.

Group: Moderator

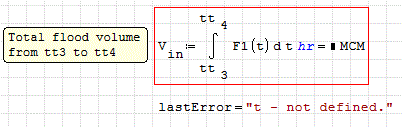

integral isn't calculated in this example. Culprit is maxima plugin. If it is installed you can't get a result.

#6 Posted: 9 years ago

NDTM Amarasekera

130 likes in 352 posts.

Group: User

http://en.smath.info/forum/yaf_postst7429_Definite-Integration-of-the-Exponential-Function.aspx

Thanks. This has been discussed.

Look within!... The secret is inside you. Best Regards Eng. NDTM Amarasekera - Sri Lanka

#7 Posted: 9 years ago

Jean Giraud

983 likes in 6,866 posts.

Group: User

Integral works for me:
You are totalising an hourly rate of accumulation
over the [a,b] time limits for a total MCM [m^3]

Jean
