x,y time depended graphs

#1 Опубликовано: 17.10.2022 13:58:40

0 сообщений из 8 понравились пользователям.

Группа: User

Hello,
I was looking for a similar topic on the forum, but I couldn't find it.
Is it possible to draw such a graph.
Graphs.sm (4 КиБ) скачан 187 раз(а).

#2 Опубликовано: 17.10.2022 16:16:22

overlord

565 сообщений из 1 338 понравились пользователям.

Группа: Moderator

Wrote
Is it possible to draw such a graph.

Yes it is possible.
Here is your request.

Regards

Graphs_1.sm (4 КиБ) скачан 192 раз(а).

2 пользователям понравился этот пост

sergio 17.10.2022 16:38:00, Oscar Campo 18.10.2022 07:13:00

#3 Опубликовано: 17.10.2022 16:33:54

sergio

115 сообщений из 329 понравились пользователям.

Группа: User

You can get the 3D graph with the Maxima plugin
Scatter plot_Kr(adattato).sm (161 КиБ) скачан 176 раз(а).
inspired by the discussion on this forum
full discussion

sergio

#4 Опубликовано: 18.10.2022 02:53:01

Alvaro Diaz Falconi

1 012 сообщений из 1 681 понравились пользователям.

Группа: User

Hi. Just another way, in addition to the solutions offered by Overlord and Pompelmo, using the ability of XYPlot plugin for plot parametric curves, as is explained here.

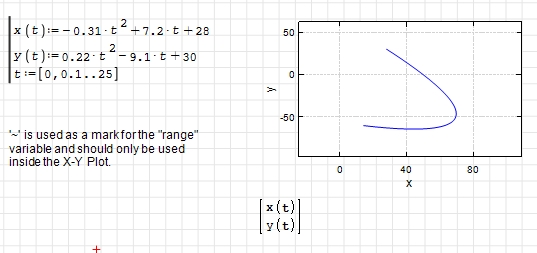

XYPlot Parametric.sm (5 КиБ) скачан 173 раз(а).

Best regards.
Alvaro.

#5 Опубликовано: 18.10.2022 10:08:54

Jean Giraud

983 сообщений из 6 866 понравились пользователям.

Группа: User

Wrote
Is it possible to draw such a graph.

... export your creation
Cheers ... Jean.

Utilities XY plot [Butterfly].sm (29 КиБ) скачан 154 раз(а).

#6 Опубликовано: 18.10.2022 18:43:50

overlord

565 сообщений из 1 338 понравились пользователям.

Группа: Moderator

Wrote
using the ability of XYPlot plugin for plot parametric curves

Parametric ability is a good addition.
I wish 2D-Plot has this feature too.
I also would like animation for XY-Plot.

#7 Опубликовано: 19.10.2022 05:17:14

Martin Kraska

1 244 сообщений из 2 167 понравились пользователям.

Группа: Moderator

The Maxima plugin provides plotting functions, among them parametric plots. For details look for "kraska smath handbuch".

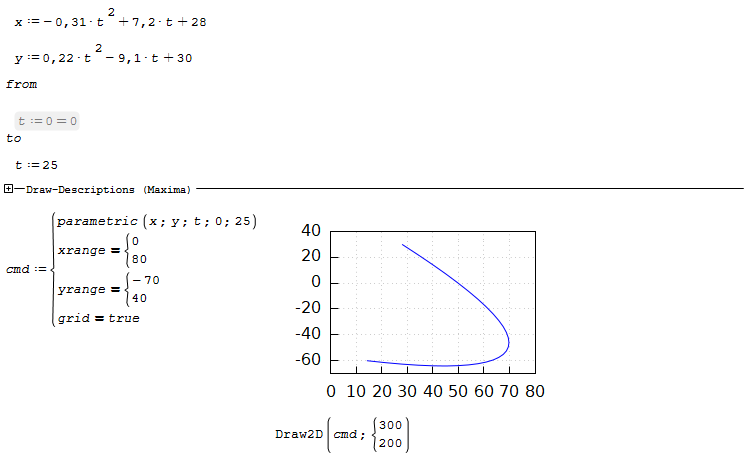

Note that there seems to be a png export glitch. The region t:=25 is disabled in the sheet but not grayed out in the export (image below). The parameter variable obviously must be undefined, otherwise the x and y expressions are just numbers.

para.sm (137 КиБ) скачан 175 раз(а).

Martin Kraska Pre-configured portable distribution of SMath Studio: https://en.smath.info/wiki/SMath%20with%20Plugins.ashx

#8 Опубликовано: 20.10.2022 10:00:35

Jean Giraud

983 сообщений из 6 866 понравились пользователям.

Группа: User

I have no recollection of Parametric Engineering project(s).
Whatever, this document advances your Parametric Journey.
Ultimately, export the project as a standard data table for publishing.
... offered up to the derivatives of the piece-wise project.
Comments, more help ... Welcome.
Cheers ... Jean.

Utilities XY plot Parametric.sm (89 КиБ) скачан 161 раз(а).
