Hi everyone

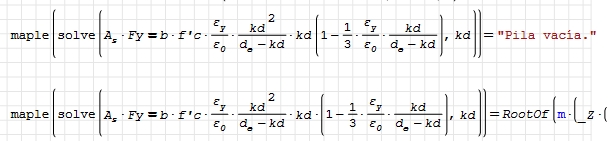

I have to try to solve this equation with maple and solve but I only get the result "Empty stack", Someone knows solve it?

Moment_Curvature relationship.sm (940,84 КиБ) скачан 1209 раз(а).

Hi. It seems that you put kd( ... ) instead kd*( ... ) in the maple solver.

Best regards.
Alvaro.

Alvaro thanks for you answer but

"kd" is the only value unknown

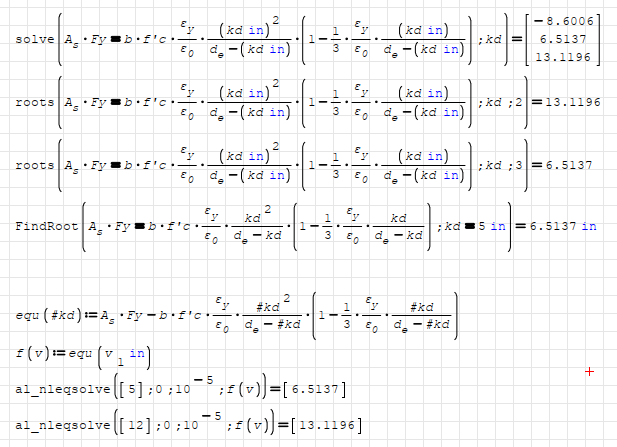

In the first expression it is kd( ... ). In the second it is kd*( ... ). There the maple answer uses RootOf, I'm guess that because you have another issue in the expression. For instance A.s*Fy have units of Newtons, but the other part not.



Best regards.
Alvaro.

Thanks a lot Alvaro

Wrote

Thanks a lot Alvaro

Alvaro is right.
Left side of equation is N (kg*m/s^2), right side is J (kg*m^2/s^2).
A dimension should be extra or missing in that equation.
Probably not correct solution but if you equate units;



Regards

1. RootOf expands easily [Example 1]
2. root is undocumented, most precious for dual solver [Example 2]
3. allvalues ... most precious in invlaplace [Example 3]

Maple RootOf Example.sm (38,42 КиБ) скачан 1227 раз(а).

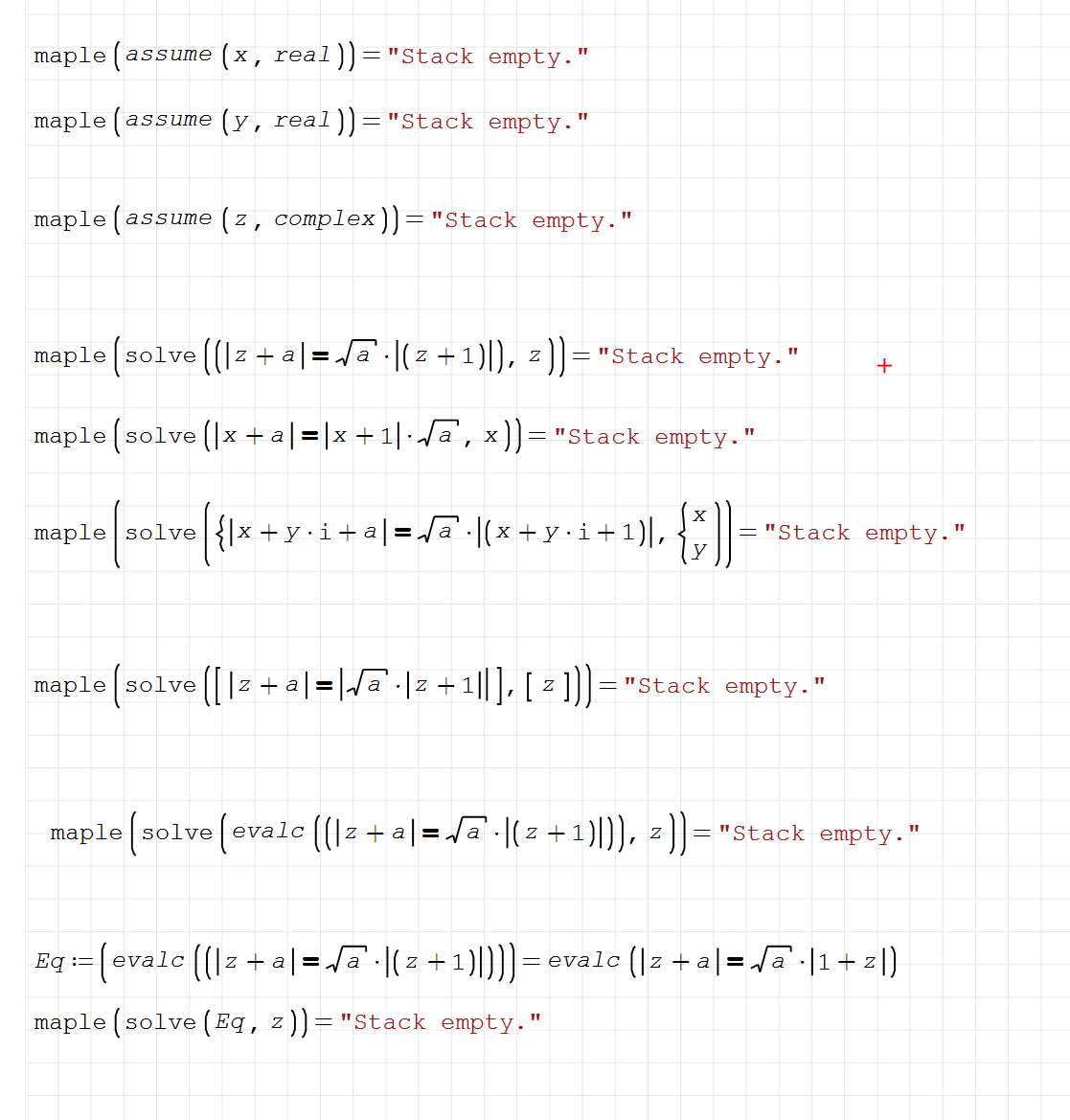

Maple Solve "stack error" when solving for complex values using abs() - Tried using the solve function using different syntax but i keep getting "stack error"
I know i could just square both side then solve, but why does this not work
any help would be apprciated





Maple Solve.sm (10,41 КиБ) скачан 35 раз(а).

Maple Flow

Hi. Maple's plugin isn't like Maxima's in that it doesn't "remember" previous instructions. You have to include them all in the same call.



maple assume.sm (5,36 КиБ) скачан 26 раз(а).

Best regards.
Alvaro.

Thank you for your help.
Im still new to SMath and Maple so i apologize if some of my questions are silly, its just hard finding resources and tutorials for using maple in SMath.

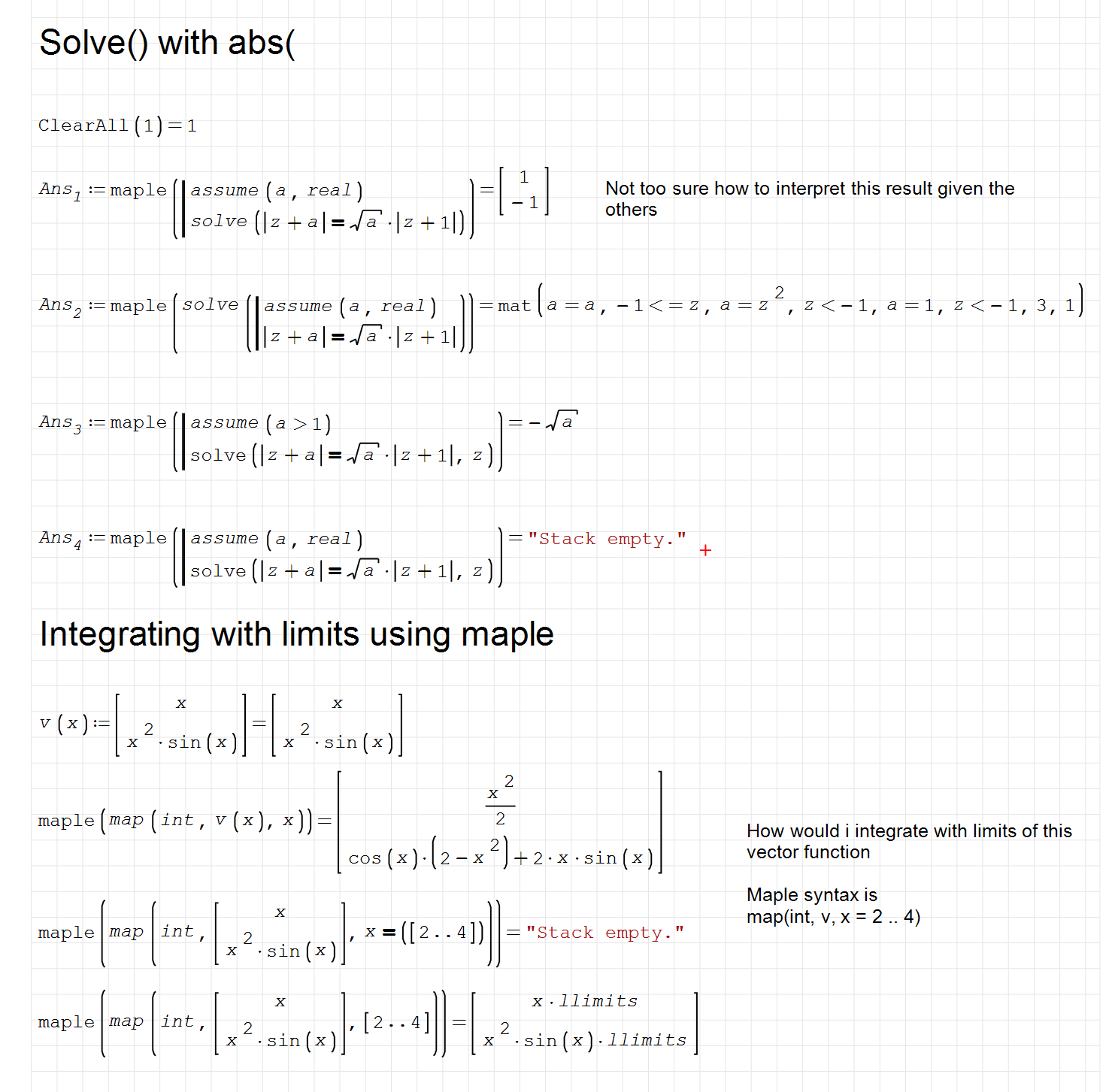

Q1
I just found these other slightly strange results using Maple to solve that equation. I'm not too concerned with it, i just want to know what the proper way of doing this would be.

Q2
Additionally need a bit of help figuring out how to integrate with limits of a space curve. I am able to do indefinite integrals but im unsure how to do definite ones.




Q3
How would i differentiate space curves

Q4
how do i do element wise operations on matrices with maple. I know in SMath you can just use the 'vectorise' button but that does not seem to work with maple

Q5
how do i sum the values of a matrix? I tried add() and sum(), neither worked


any other tips or guides for using maple in SMath would be appreciated

Hi. Happy Labor Day, Some few notes

Q1
I just found these other slightly strange results using Maple to solve that equation. I'm not too concerned with it, i just want to know what the proper way of doing this would be.

First, this version of maple is from year 2000, Therefore, many of their results will be incomplete, "primitive", or simply wrong.

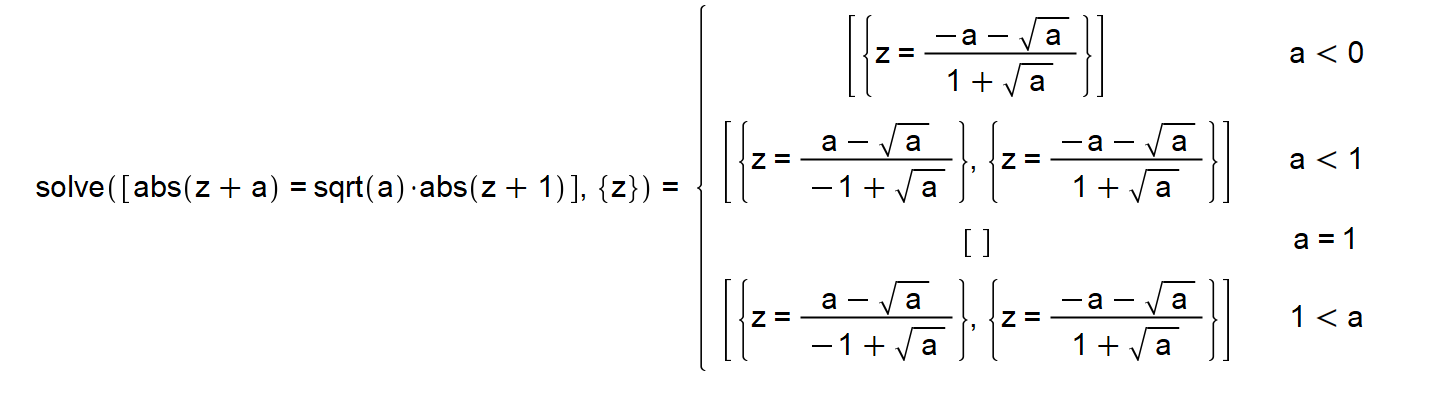

Regarding Ans1, it seems to be solving the equation for a, not for z. The same goes for Ans2, but I don't really understand what kind of answer maple is giving.

Regarding Ans3, SMath simplifies the result in that way; you can see it by going to Optimization -> None



Notice that SMath's simplification rules perform the following conversion, where Maple has nothing to do with it.



Regarding Ans4, the problem becomes very difficult for this version of Maple, since the root becomes complex to a real, but negative.

Q2
Additionally need a bit of help figuring out how to integrate with limits of a space curve. I am able to do indefinite integrals but im unsure how to do definite ones.

Use vectorize:



Q3

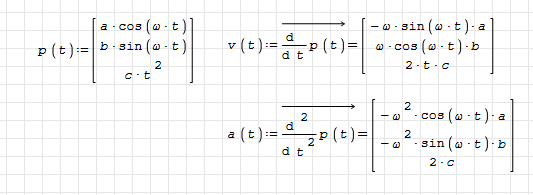

How would i differentiate space curves

Use vectorize:



Q4
how do i do element wise operations on matrices with maple. I know in SMath you can just use the 'vectorise' button but that does not seem to work with maple

The plugin doesn't translate SMath's vectorize function to maple, but you can use it externally, as in the integral example or this other one, where SMath doesn't know the exponential and sine integral functions, but maple does



Q5
how do i sum the values of a matrix? I tried add() and sum(), neither worked

Use sum( ... ) from SMath:



any other tips or guides for using maple in SMath would be appreciated

You can see the first page and subsequent pages of the plugin, where the author usually provides the most relevant examples of how to use it and what he created it for.

Best regards.
Alvaro.

love you bro

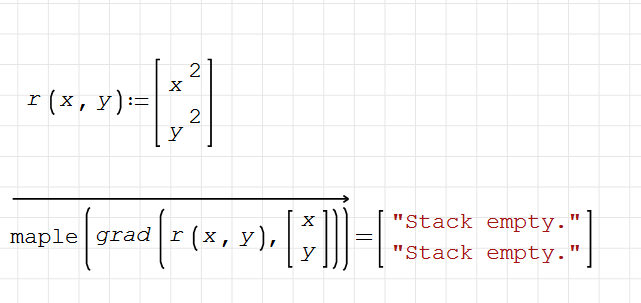

last question is just how do i take the divergance, curl or gradient of a function



thanks for all the help

Hi. Please, check some of the files in this old post:

https://smath.com/en-US/forum/topic/oSEzxZ/Grad_-Div-and-Curl-in-a-curvilinear-coordinate-system

Best regards.
Alvaro.

Thank You!
